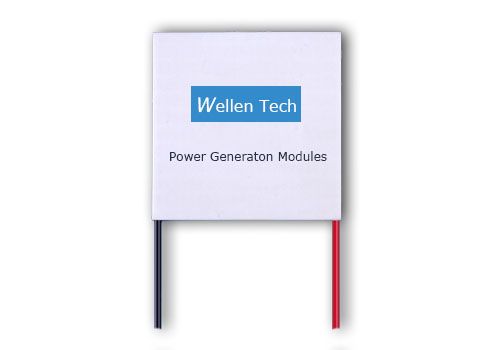

Power Generation Modules

Inquire Now

Specification

Part No.	Dimensions(mm)			Cold side = 30 C Hot side = 150 C
	A	B	H	Rinternal	Heat Flow	U	I	W
	A	B	H	Ohm	W	V	A	W
TEG-10-33	30	30	3.6	3.92	2.27	2.18	0.56	1.21
TEG-10-46	40	40	3.9	2.06	1.43	2.25	0.91	2.05
TEG-10-44	40	40	4.8	3,12	2.23	2.5	0.65	1.63
TEG-19-48	40	40	3.4	2.35	0.45	2,19	1.14	2.49
TEG-19-43	40	40	3.9	5.2	0.91	3,03	0.79	2.39
TEG-10-60	50	50	4.5	1.22	1.53	2.35	1.45	2.4

These modules are the Bismuth Telluride based thermoelectric modules for converting heat into electricity. It is designed to optimize its performance for around 200C heat source.

Part No.	Dimensions(mm)			Cold side = 30 C Hot side = 300 C
	A	B	H	Rinternal	Heat Flow	U	I	W
	A	B	H	Ohm	W	V	A	W
TEG-1263-1.5	30	30	3.6	2.96	90	4.1	1.3	5.33
TEG-1264-0.8	30	40	3.9	1.59	166	4	2.4	9.8
TEG-1994-1.5	40	40	3.8	3.07	192	5.6	1.8	10
TEG-12656-0.3	56	56	3.4	0.9	306	4.2	4.6	19.3
TEG-12656-0.55	56	56	3.6	1.12	246	4.3	3.8	16.5
TEG-24156-1.2	56	56	3.6	2.4	365	7.2	3	21.6

These modules are the Bismuth Telluride based thermoelectric modules for converting heat into electricity. It is designed to optimize its performance for around 250-300C heat source.
