Multi-stage Modules

Multi-stage modules are designed to provide higher temperature difference than that are abtained by standard single-stage modules. These multi-stage TECs are suitable for low temperature applications where a moderate cooling capacity is required. Typical applications include: IR detectors, CCD arrays and electo-optics.

Inquire Now

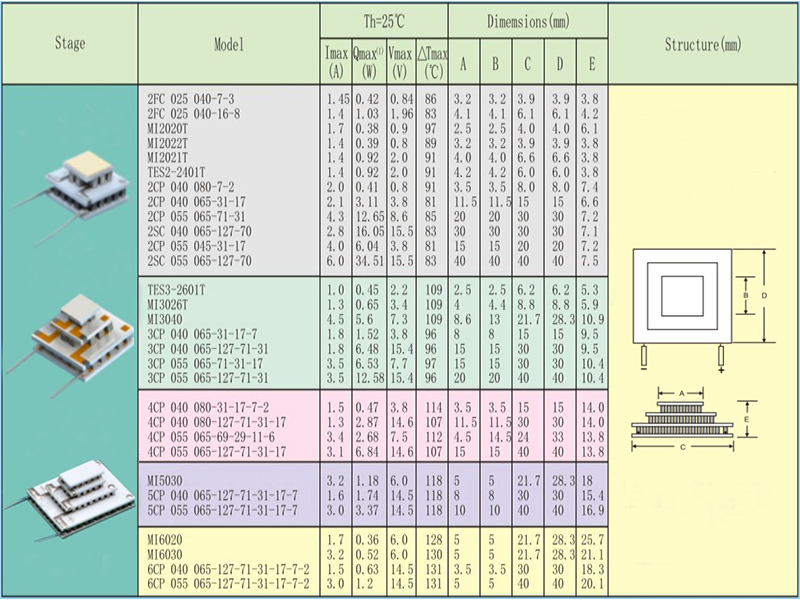

Specification

Multi-stage Modules

Notes:

1.The operating temperature can be: 125℃, 150℃, 200℃.

2.The length of lead wire could be fixed by clients, the common length is 150mm.

3.The sealing of TE modules: Unsealing, Silicon, Epoxy, the normal sealing is silicon gel.

4. We can also provide customed service for thermoelectric cooling modules.
