SPECIFCIATION
| Part No. | WFP-70W-24-C |
| Max Cooling power | 70W @ △T = 0℃ |
| Voltage of Peltier cell | 24V |
| Current of Peltier cell | Start 5 A / Working 4.2 A |
| Hot side fan | 0.15A @ 24V |
| Operating Temperature | -10~70℃ |
| Weight | 2.6 Kg |
| Note | Cool only |

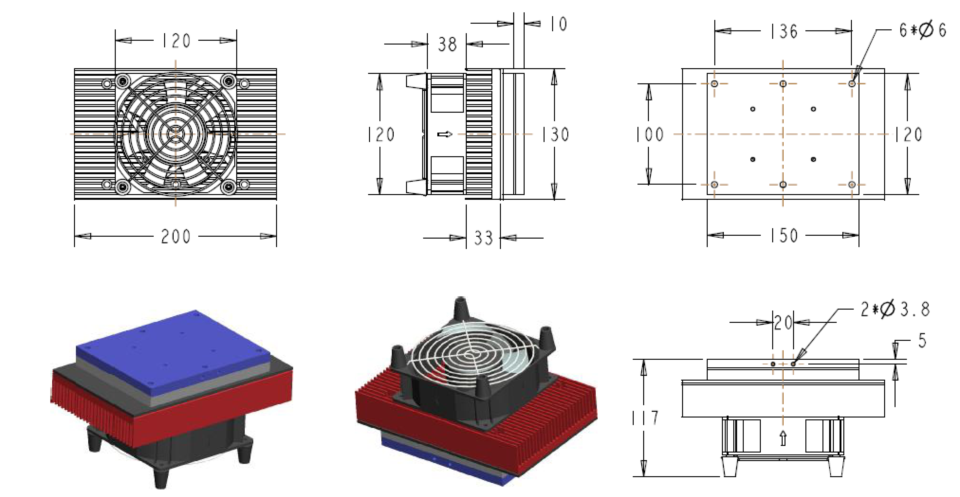

DIMENSION

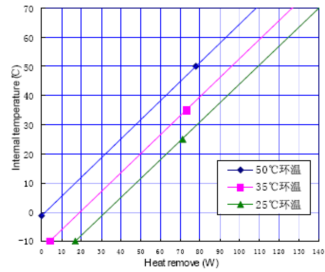

PERFORMANCE CURVE
Note:
The performance curve give the example that when the intermal temperature is 50℃ and the environment temperature is 50℃, the cooler can transfer the 78 W heat from inner side to the out side.

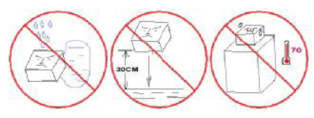

NOTES WITH USE
Ø Please use the 24 V DC power with the ripple less than 10%.
Ø The cystal of Te2Bi3 is fragile. Intense crash is forbidden even the height is 10-20cm.
Ø No water resistance.Please use in the without water.
Ø When mounting, please keep 10 cm distance with other substance.
Ø please do not use it, when the temperature of the assembly or environment is higher than 70℃

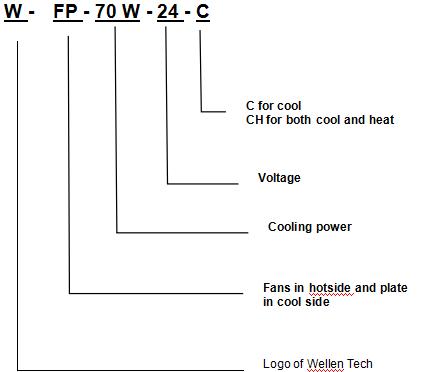

NAME METHOD
ABOUT MOUNTING
