SPECIFCIATION
| Part No. | WFF-60W-12-C |
| Max Cooling power | 60W @ △T = 0℃ |
| Voltage of Peltier cell | 12V |
| Current of Peltier cell | Start 8.8A / Working 6.7 A @12V |
| Hot side fan | 0.3 A @ 12V |
| Cold side fan | 0.2 A @ 12V |
| Operating Temperature | -10~70℃ |
| Weight | 2.6 Kg |
| Note | Cool only |

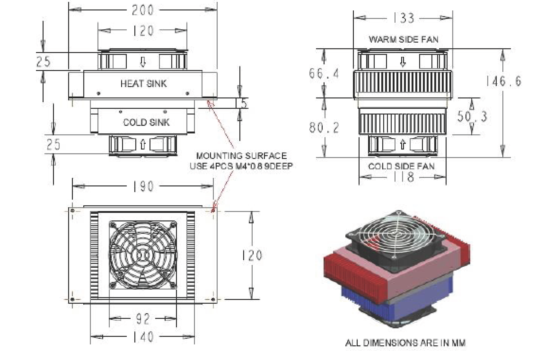

DIMENSION

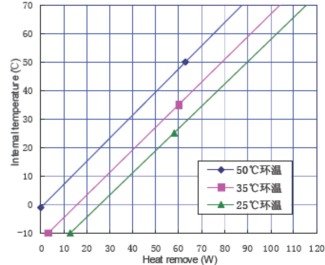

PERFORMANCE CURVE
Note:
The performance curve give the example that when the intermal temperature is 50℃ and the environment temperature is 50℃, the cooler can transfer the 60 W heat from inner side to the out side.
NOTES WITH USE
Ø Please use the 12 V DC power with the ripple less than 10%.
Ø The cystal of Te2Bi3 is fragile. Intense crash is forbidden even the height is 10-20cm.
Ø No water resistance. Please use in the without water.
Ø When mounting, please keep 10 cm distance with other substance.
Ø please do not use it, when the temperature of the assembly or environment is higher than 70℃

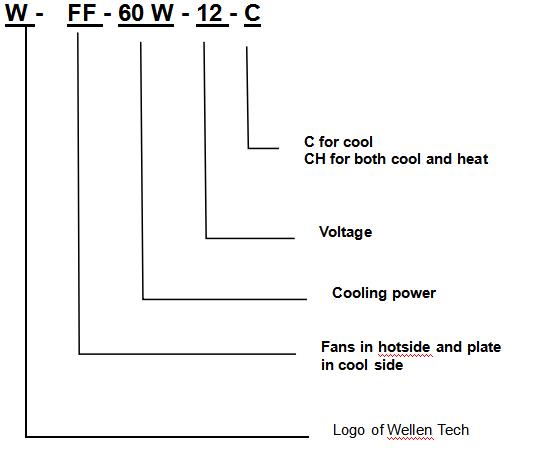

NAME METHOD

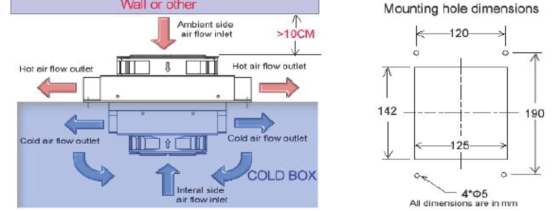

ABOUT MOUNTING
