SPECIFCIATION
| Part No. | WFF-36W-12-C |
| Max Cooling power | 36W @ △T = 0℃ |
| Voltage of Peltier cell | 12VDC |
| Current of Peltier cell | Start 6.0A / Working 4.3 A |
| Hot side fan | 0.26A |
| Cold side fan | 0.20A |
| Operating Temperature | -10~70℃ |
| Weight | 0.95 Kg |
| Note | Cool only |

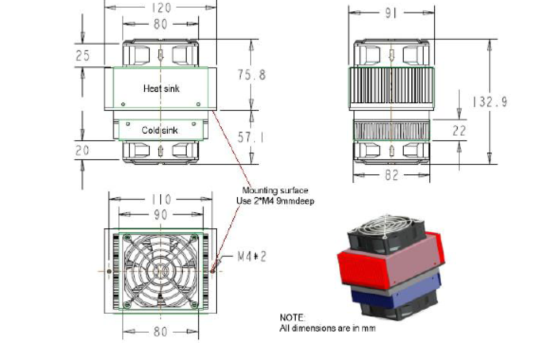

DIMENSION

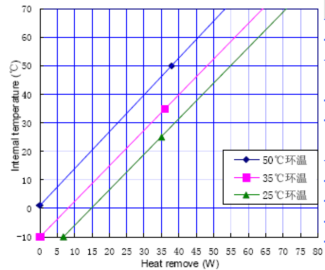

PERFORMANCE CURVE
Note:
The performance curve give the example
that when the intermal temperature is 50℃
and the environment temperature is 50℃,
the cooler can transfer the 36W heat from inner side to the out side .

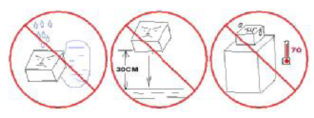

NOTES WITH USE
Ø Please use the 12 V DC power with the ripple less than 10%.
Ø The cystal of Te2Bi3 is fragile. Intense crash is forbidden even the height is 10-20cm.
Ø No water resistance.Please use in the without water.
Ø When mounting, please keep 10 cm distance with other substance.
Ø Please do not use it ,when the temperature of the assembly or environment is higher than 70℃

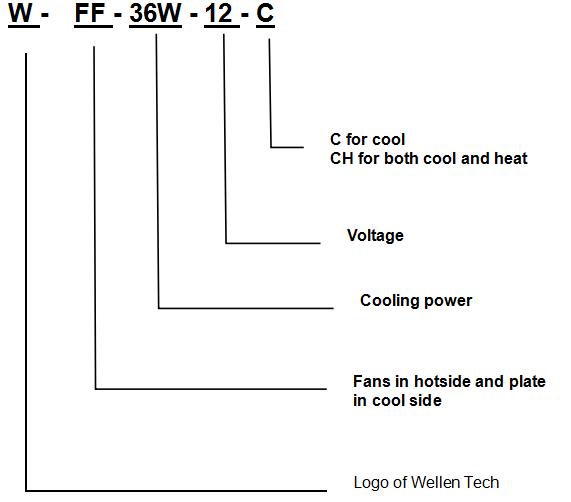

NAME METHOD

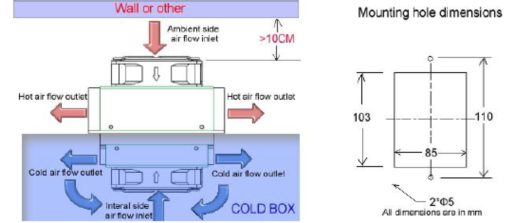

ABOUT MOUNTING
